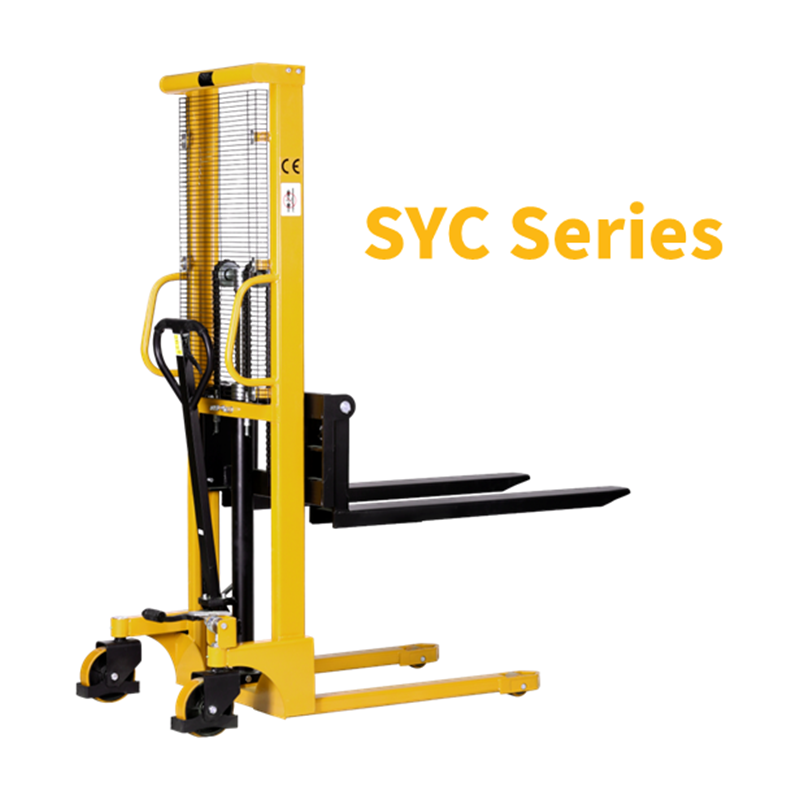

SYC - Manual Stacker Series
• It applies C-type steel structure design,Lifting more stable and safe.
• All Manual stacker are equipped with wheel frame protection device.
• The handle is surrounded with rubber, with lengthening design
• Single Frame have two ways to unload, by manual or by pedal
• Wheel frame equipped with grease fitting design,It will help do routine maintenance for bearing
• Various kinds of fork types,fixed fork, Adjusting fork, also with the adjusting wide leg or fixed wide leg.
| Model | SYC0516 | SYC1016 | SYC1516 | SYC2016 | SYC1020 | SYC1025 | SYC1030 |
| Capacity (kg) | 500(1000lbs) | 1000(2000lbs) | 1500(3000lbs) | 2000(4000lbs) | 1000(2000lbs) | 1000(2000lbs) | 1000(2000lbs) |
| Max. lifting height (mm) | 1600 | 1600 | 1600 | 1600 | 2000 | 2500 | 3000 |
| Lowered fork height (mm) | 85 | ||||||
| Fork Length (mm) | 1000 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork Width (mm) | 330-740 | 330-740/550 | 330-740 | ||||
| Front wheel (mm) | Φ80*58 | ||||||
| Loaded wheel (mm) | Φ180*50 | ||||||
| Overall dimension (mm) | 1600*760*2030 | 1600*760*1580 | 1600*760*1840 | 1600*760*2080 | |||
| Service weight (kg) | 150 | 224 | 240 | 270 | 290 | 310 | 330 |
