• Ergonomic Handle
• Adjustable Tappet
• Anti-slippery fork-design
• Integrated pump, well sealed, Foot pedal release
• Entry&Exit Roller installed

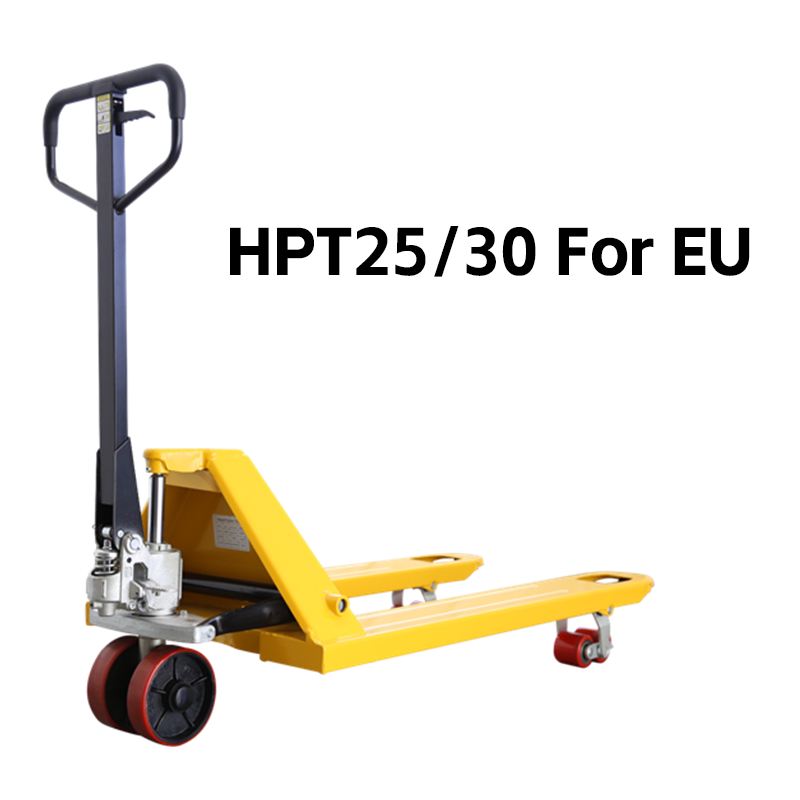

| Model | HPT25 | HPT30 |
| Load Capacity （T) | 2.5T (5500lbs) | 3.0T (6600lbs) |
| Fork Lowered Height （mm) | 85 / 75 （tandem / single） | |
| Max.Fork Height （mm) | 200 / 190 （7.9''/7.5'', tandem / single） | |
| Steering wheel （mm) | Ø180x50 (Ø7''/2'') |
|
| Loading Wheel（tandem） （mm） | Ø80x70 (Ø3''x2.8'') |
|
| Loading Wheel（single） （mm） | Ø74x93 (Ø2.9''x3.7'') |
|
| Fork size （mm） | 160x55ccc | |
| Overall Fork Width （mm） | 550/685 (22''/27'') | |
| Overall Fork Length （mm) | 1150/1220 (45''/48'') | |
| Service Weight （kg） | 61/65/65/69/62 (134/143/143/152/136lbs) (Nylon narrow/Nylon wide/PU narrow/PU wide/PU wide single) |
66/70/71/75/68 (145/154/156/165/149lbs) (Nylon narrow/Nylon wide/PU narrow/PU wide/PU wide single) |
